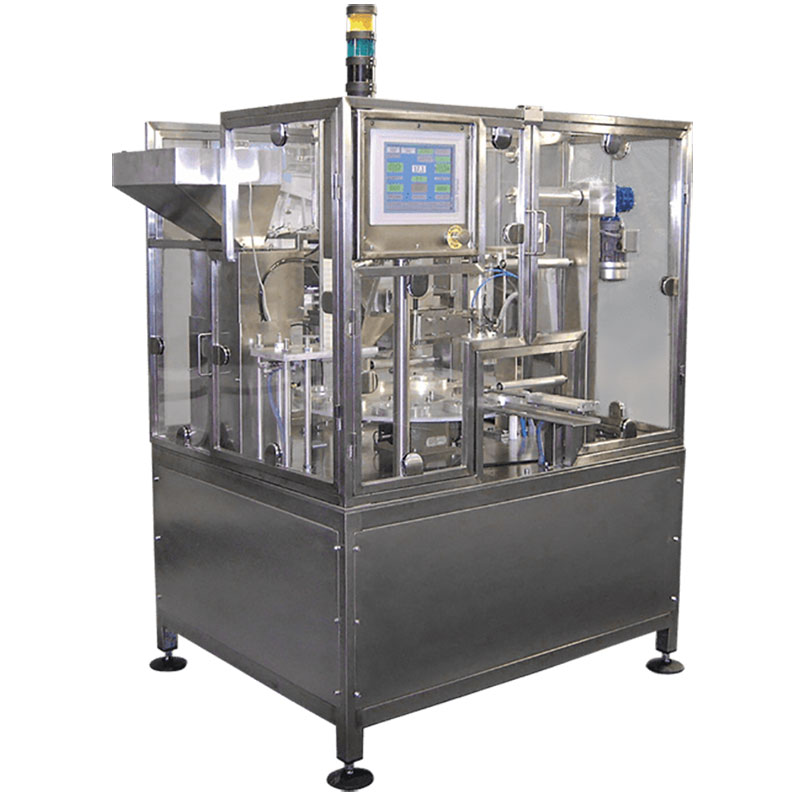

AUTOMATIC ROTARY WEIGHING PACKAGING MACHINE FOR PRODUCTS IN TRAYS – CUPS WITH AMENDED ATMOSPHERE (M.A.P) AYTOMATIC ROTARY FILLING & SEALING MACHINE (M.A.P) SBF50
The machine is fully automated with automatic feed-in tray, detection in the tray, filling, printing barcodes text, oxygen removal, sealing, fitting cap, label and exit.
All filling systems are adapted such as weighing with one to four heads, volume measuring, counting, metering for powder products and liquids.
All machine programming is controlled by PLC and digital color touchscreen 10.4” with Greek or English menu.
In the display, except for the options and settings that the operator can select, the flow of the machine function and damage is shown, as well as the damages with rehabilitation instructions.
The whole machine is made of stainless steel and aluminum.
Easy and inexpensive to change the mold.
There is the possibility for remote monitoring and surveillance of the operation of the machine by computer or mobile phone.
Disinfection system with ultraviolet radiation.
Protection in accidents.
Low purchase cost.
Automatically takes the cup.
Automatic weighing and filling.
Weighing capacity from 20 to 5000gr.
Minimum disc dimension 50mm X 50mm.
Maximum disk dimension 300mm x 300mm.
Minimum cup diameter 50mm.
Maximum cup diameter 300mm.
Production of approximately 20 pieces per minute depending on the product and the weight.
Silo capacity 20kg.
Power: 2 KW
Machine weight: 400kg
